๐ถ Overview

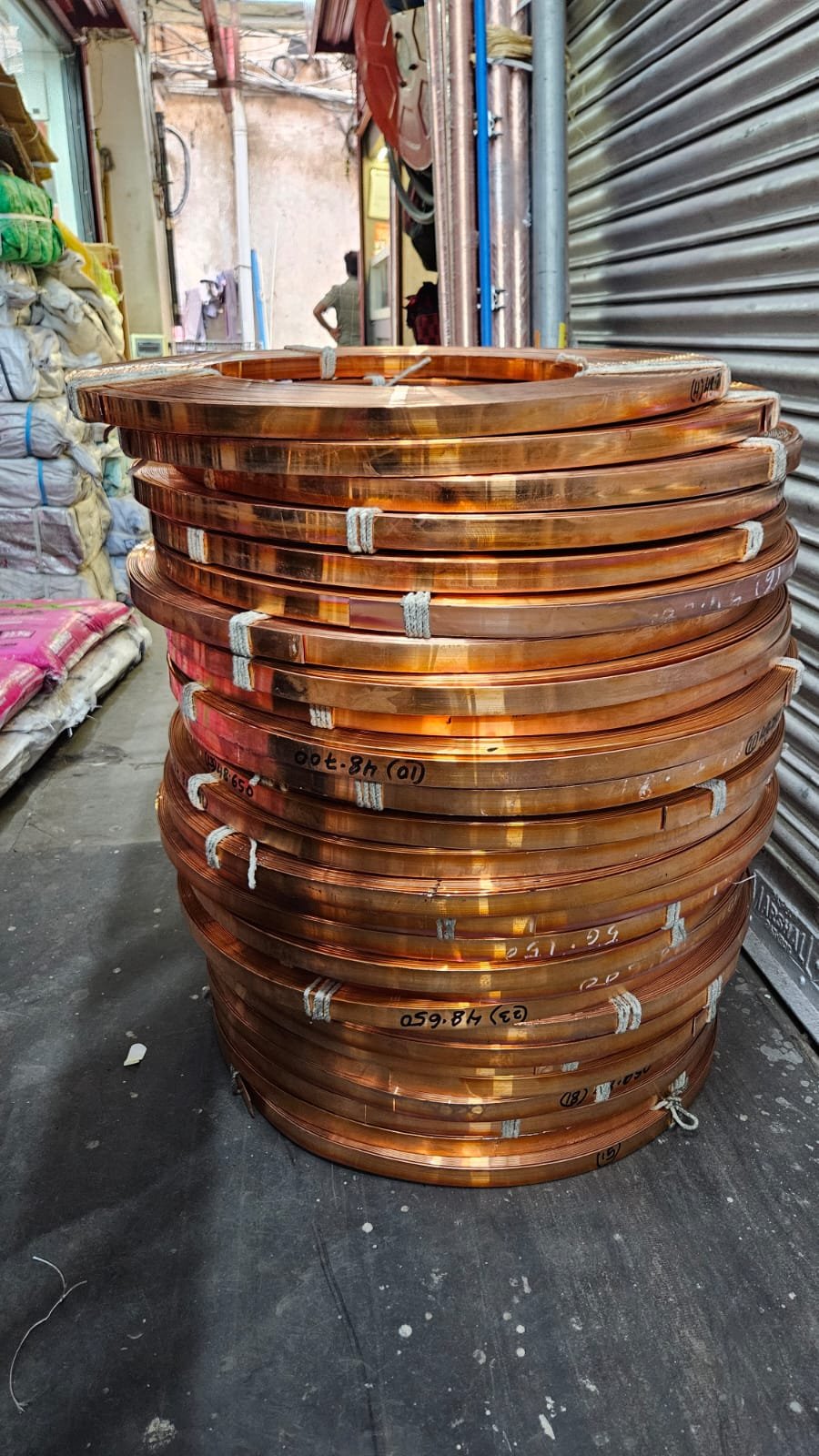

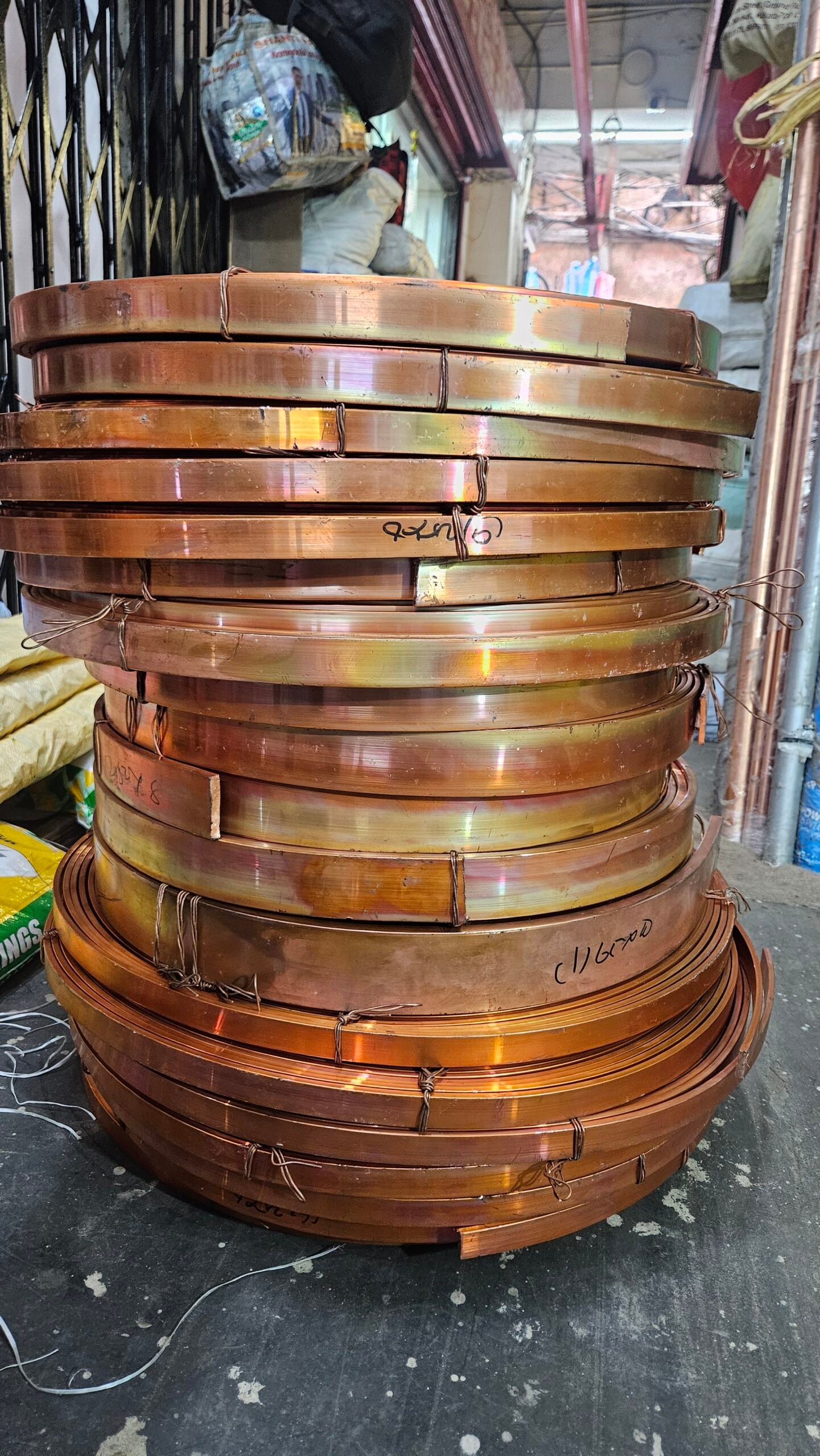

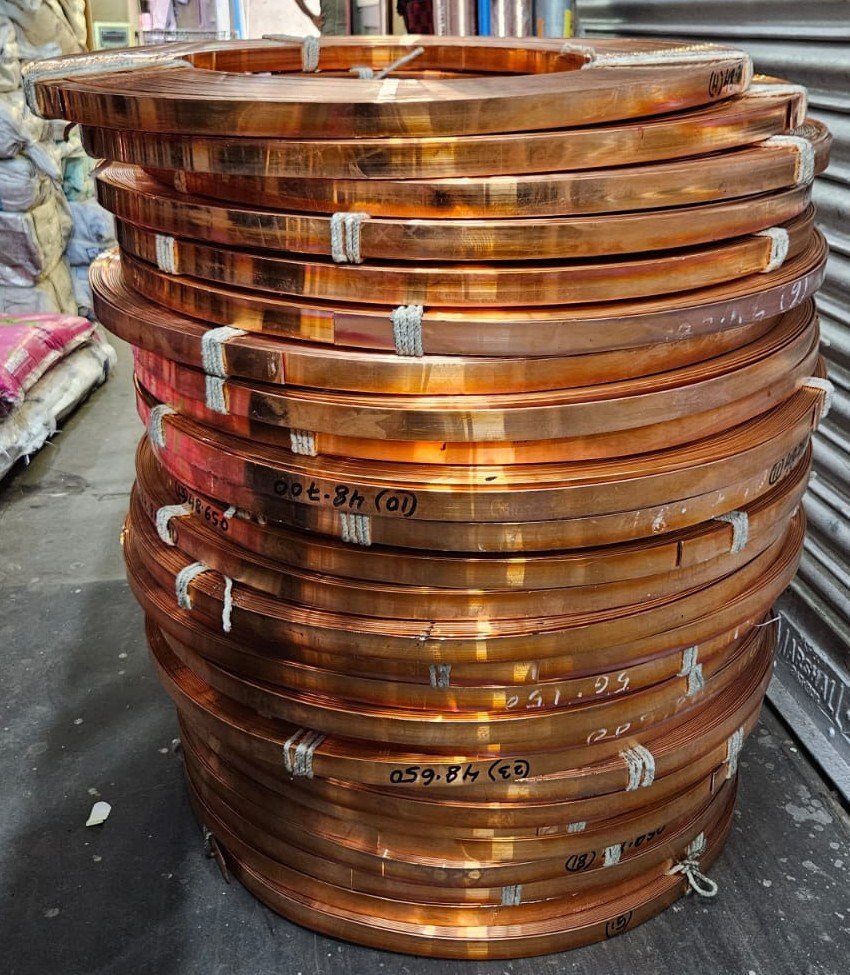

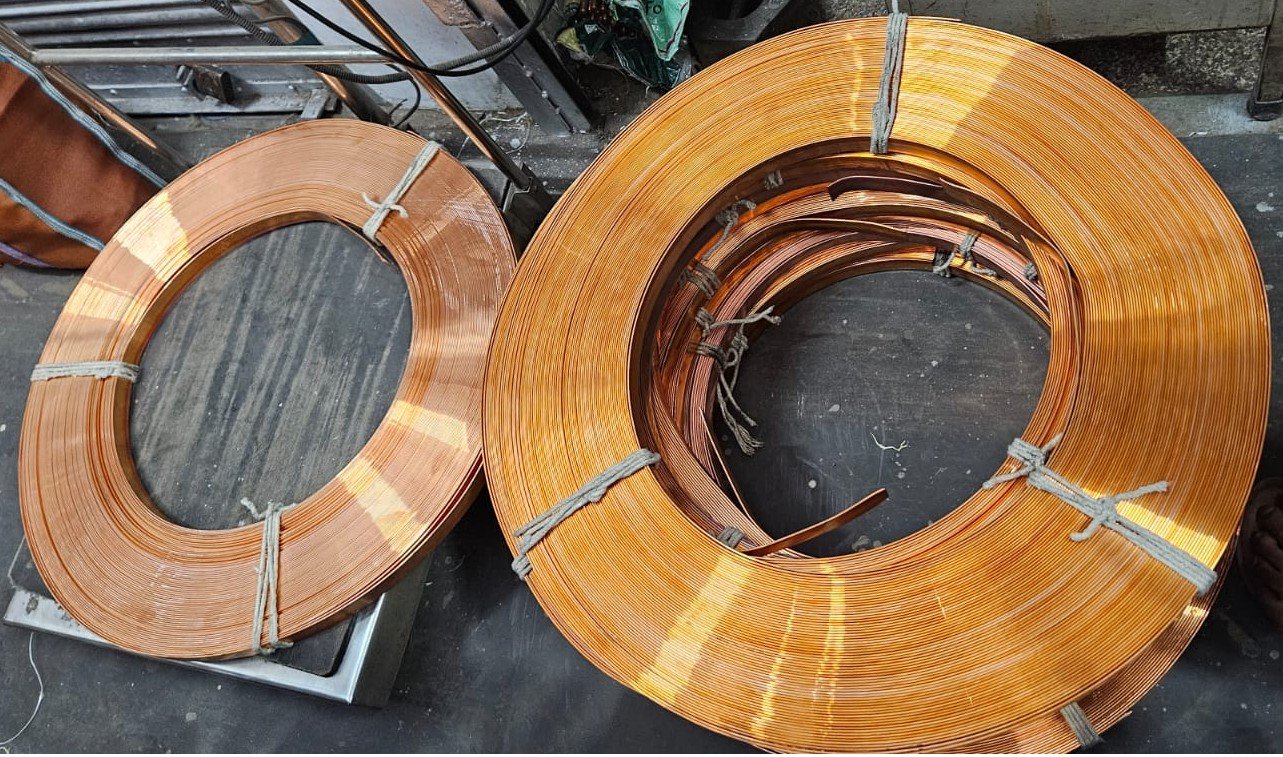

Our Copper Strips are manufactured using high-purity electrolytic copper, ensuring superior electrical conductivity and long-term durability. These strips are widely used in earthing systems, lightning protection, switchgear connections, and electrical panels.
๐ถ Key Features
โ High Electrical Conductivity (> 99.9% pure copper)
โ เคเคคเฅเคเฅเคทเฅเค corrosion resistance for long life
โ Smooth finish for easy installation
โ High tensile strength and flexibility
โ Suitable for harsh environmental conditions
๐ถ Applications
- Earthing / Grounding Systems
- Lightning Protection Systems
- Electrical Panels & Switchgear
- Substations & Power Plants
- Railway & Infrastructure Projects
๐ถ Technical Specifications
| Parameter | Details |
|---|---|
| Material | Electrolytic Grade Copper |
| Purity | 99.9% |
| Thickness Range | 3 mm โ 12 mm |
| Width Range | 20 mm โ 100 mm |
| Length | As per requirement |
| Standard | IS 613 / ASTM B187 |
| Finish | Bare / Tinned (optional) |
๐ถ Available Variants
- Thickness: 3mm, 6mm, 10mm, 12mm
- Width: 25mm, 50mm, 75mm, 100mm
- Type: Bare Copper / Tinned Copper
